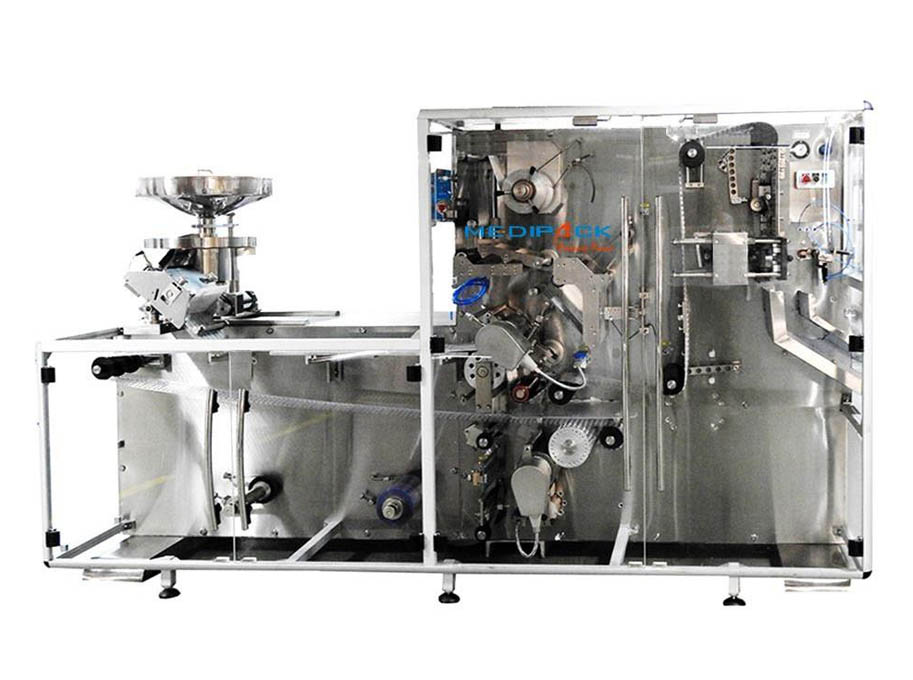

Blister Expert Rotary Machine
Technical Specification
| POWER | (415 V Ac 3 phase + N+E50 Hz) other Voltages on request |
| Pvc Base-Film | Max. 210 Mm |
| Pvc Film Thickness | 0.25/0.30/0.35 Mm |
| Pvc Reel Diameter | Max. 440 Mm |
| Aluminium Foil Width | Max. 206 Mm |
| Aluminium Foil Thickness | 0.02mm -0.03mm |
| Aluminium Real Diameter | Max 220 Mm |
| Total Forming Area | Min. 30mm X 202mm Max.110 Mm X 202mm |
| Advance | 110 Mm |
| Pack Length Punched Out | 202mm |
| Pack Width Punched Out | 110 Mm |
| Forming Depth | Max. 12 Mm |
| Machine speed | Forming length per min 2.5mtr/3mtr |
| Electrical Power | 8 Kva. Without |
