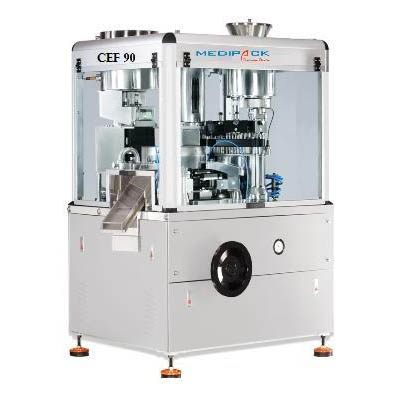

Automatic Capsule Filling Machine Cef-90
Ambient Parameter of filling room like humidity and temperature is very important to ensure the proper flow of capsules. Failure to control the above parameter can result in the malfunctioning of the orientation system leading to jamming of capsule.
Filling room conditions: 20º C to 25º C
Relative Humidity: 40 to 50% R
Specification
| Product handled | Powder | |
| Output | Powder Filling Up to 90000 per hour max | |
| Dozing System | Powder Filling Tamping (slug formation through progressive compression) | |
| Capsule type | Hard gelatin/ cellulose | |
| Suitability for capsule size | 00,0,1,2,3 & 4 with change cover | |
| Electrical Details | 415 V 3 phase 50Hz, Neutral & Earthling | |
| Power consumption Connected Load for Machine Connected Load for Machine (with vacuum Pump, Vacuum Cleaner & Air Compressor) |
Main Motor Powder feed motor 3.0HP/2.0KW 11HP/ 8KW |
2HP / 1.5KW/ 700 RPM 0.5HP / 0.37 KW |
| Vacuum requirement | Capsule Separation Cleaning | 1100 LPM at 26” of
Hg
2800 LPM at 4” of Hg |
| Compressed Air | 300LPM at 6 Kg/cm2 | |
